What’s In A Name Where Blade Steel is Concerned?

Damascus, San-mai, Wootz, Forge Welded, and Eletro-Etching

There seems to be some confusion as to what is Damascus and what isn’t. Real Damascus can usually only be found in museums. The secret recipe/formula was lost over 200 years ago.

Modern day “Damascus” is actually a steel combination that the original Damascus was made of, and can be found in a steel combination known as ‘Wootz’.  What we are calling Damascus today is actually “Forge Welding’.  Layers of different types of steel are stacked in together; heated to a critical temperature; then pounded out and folded over and put back into the forge and reheated to critical temperature. This is done multiple times.  The resulting piece of Forge Welded Steel can be anywhere from 3 layers to thousands of layers. The more layers, the more expensive the blank will be. This stuff is bought by the inch not by the foot like other steel.

San-mai is a type of Forge Welding that uses a High Carbon Steel center which is sandwiched between more pliable metals. This makes the resultant steel tougher and more flexible than a straight High Carbon Blade. It is often mistaken for Damascus, but if you look at the spine of the blade you will see a dark strip running down the middle of the blade with lighter colored steel on each side as in the image below.

little brute blade back

On a Forge Welded blade, if you examine the spine you will see hundreds of tiny lines running the length of the blade spine. These are the layers of folded steel. That is how you can tell a real Damascus blade from a fake one. There are two types of the fake stuff coming out of the Middle East. One looks and feels like the real deal – however, the steel used is very inferior steel that will not hold an edge. The other one again ‘Looks’ like Forge Welded steel, but when you feel the blade it’s surface feels rough and looks crude in comparison to the real steel. I’ve bought some of this stuff from the Middle East and taken the belt grinder to it only to find it is a plain steel that has been etched to look like a Forge Welded blade. There are no layers of different metals. People often ask if my knives are Damascus. They are not, unless I specifically say so in the write up on them. They have been ‘Eletro-etched’ and I do not TRY to make them look like Damascus.

How to Care for Your Knife

The Blade

Unless otherwise specified, your knife was made with a ‘High Carbon Steel’ (1095, 1084, 1075, D2-Tool Steel or 440C). Because it is NOT ‘Stainless Steel’ you will need to take care of your knife or it will rust (stainless also will rust under the right circumstances).  Also it will obtain a ‘Patina’ with use. This (and any rust) can be easily removed with a green scrub pad and some powder cleanser or you can use a 1000/1200 grit sandpaper, used very lightly. Apply an oil to the surface from time to time, any oil will work but I use A.G. Russell’s ‘Rust Stop’ (Food Safe). I’ve had the bottle several years now and it still almost full. So a very tiny dab is applied and spread VERY CAREFULLY with your finger or use a cotton swab.  Start at the spine and rub down towards the edge. Do NOT store the knife in it’s sheath for extended periods of time as the chemicals used on the leather will eventually cause corrosion (even on stainless).

How often should you sharpen your knife? I use a ‘High Carbon Steel’ because it will produce and hold a wicked edge, and is easy to sharpen – EXCEPT – the D2. Although this steel will hold an edge the longest, it is B-itch to put an edge on it, so keep it sharp.  There is a picture on the website of my friend Bill holding up his “Kenai Moose Skinner’ in front of a moose he just skinned all the way through without having to sharpen the blade. Just make sure you sharpen it at home before going out into the bush.

The other steels can be ‘Touch-up’ sharpened in the field if necessary. Let me say here that it is MUCH easier to “Maintain” an edge than to put a new edge back on the knife. I ‘Touch-up’ sharpen my knives after every day of hard use and give it (and all our kitchen knives) full sharpening once a month.  Get yourself a small ‘Diamond Sharpener’ in either med or fine (not expensive). Give the blade a few light strokes and that will keep it sharp. The black sand paper for metal also works very well.  I use 220 grit to start and go to 400 or 500 grit to finish. I use ‘Birthwood Casey Gun Oil’ as a lubricant.

Now – different companies use different angles of degrees to put on their edge. My knives – place the edge perpendicular to the stone surface. That is 90 deg. Split that in half and you get 45 deg. Half of that is roughly 23 deg. That’s the angle of the blades edge. For kitchen knives or Filleting knives, tilt that down just a couple more deg to roughly 17 deg. I find that if I highlight the edge with a black marker, I can see if all of the edge is getting hit and that it’s at the right angle.

The Handle

With use the handle of your knife will become worn. To keep it looking new, use a 320 or 400 grit sandpaper for wood and sand it very lightly. I use ‘Birchwood Casey’ gun stock care products on all my wood handles. Apply a light coat of ‘Tru-Oil’ let it dry, hit it with steel wool, wipe it off. Repeat as often as necessary. You can then apply several coats of ‘Filler Sealer’ or not as Tru-oil works just fine. Almost all of the wood I use is “Stabilized” in a ‘Vacuum Chamber’ while submerged in resin. This hardens and help prevent the wood from splinting and helps prevent wear.

The knives with horn, antler, or bone should not need anything. I stabilize these using multiple coats of thin ‘CA Glue’. Be warned – this glue is very toxic. Use a respirator and have lots of air circulation if you use it. I occasionally use synthetic products (i.e. Macarta) that do not really require any care beyond keeping it clean.

The Sheath

I use only top quality leather for my sheaths from Tandy. I use waxed thread or ‘Faux Sinew’ for the stitching. The sheath is treated with ‘Mink Oil’, ‘Neatsfoot Oil’ and ‘Renaissance Wax’ for the polish and conditioning of the leather. It’s what museums use to restore and preserve old leather.

MoonDog’s “Building Blocks”

I regard ‘Forging your own steel’ in the same way I regard ‘Casting your own bullets’ – it’s something you can get into if so inclined, but not necessary. There are dozens of companies out there who offer ‘Steel Blanks’ upon which a knife blade can be designed, shaped and cut. From these I choose only high quality steel to work with. My preference is exceptional edge retention over corrosion resistance because corrosion can be prevented with proper care and it can be remove if it occurs. However if a knife can not hold an edge, it is useless and ‘High Carbon Steel’ is my primary choice of medium to work with because of it’s ability to hold a truly wicked edge. But because some people can not be bothered with having to care for a knife, I do make knives of ‘High Carbon Stainless Steel’ as well.

My preferred steel for ‘Art Knives’ is Damascus, however using just that would put the cost of knives out of reach for most people. Damascus is a type of blade material where the steel is heated and folded over and over creating layers. The number of folds can vary from 3 to 2000. Obviously the more folds the more expensive the material and this steel is bought by the precious inch. Damascus comes in many different patterns and types. In an effort to keep my knives affordable and still maintain quality I mainly use 512 fold steel. My preference is a blade with a high carbon center for holding an edge and softer stainless steel layers for strength and flexibility.

For non-Damascus steel I tend to prefer ‘High Carbon’ steels (1084, 1095 High Carbon Steels, D2 Carbon Steel, or 01 Tool Steel) and the ‘Stainless Steels’ that I use also have a high carbon content (440C, CPM154 and 5Cr15). What that means for you the buyer is that you will have to look after your knife. By that I mean that you will need to dry it after use, don’t store it in a wet sheath and keep it lubricated with ‘Rust Free’ or some other product that will prevent rust.

All of my knives that are made using natural materials (bone, wood, antler, horn) for handles, are ‘Stabilized’ using either CA glue, Wood Juice – wood stabilizer or Polycryl – wood fortifier. They are all finished with ‘Renaissance wax’ which is used by museums and historic object restorers and collectors as a conservational material.

The other factors that affect the price of Moondog Knives are the handle materials, ranging from deer or elk antlers, to exotic woods like desert iron wood, to handcrafted Micarta. The other material cost is the sheath materials used. I use lightly worked leather keeping the design simple and functional, but built to last. My goal is to make custom handcrafted knives affordable for the average person.

The Kenai Moose Skinner

This knife was inspired by a suggestion from a friend who is an experienced, avid hunter. The design is based upon the Cattaraugus from the 1880s. My friend gave many suggestions throughout the development process and I am confident this will be a welcomed addition to any hunter’s collection of working knives. The knife pictured here is the first Kenai Moose Skinner and is already sold. It is a custom build for a client in Alaska. The overall length of the knife is 9″ and the blade alone is 4 3/16″. The blade width is 1 3/16″ and 5/32″ thick.

KenaiSkinner002

KenaiSkinner001

This knife is made using ‘D-2 Carbon Steel’. I use this steel in the more expensive knives that I make because D-2 is considered by many to be the best carbon steel for knife blades. The combination of superior abrasion resistance and toughness is the result of it’s high carbon and high chromium content.

Unlike the high carbon steel I use in my more economical knives, it is not easy to sharpen so you want to make sure it’s sharp before you head out hunting. On the up side, it holds an edge really well and if properly sharpened should last through the entire animal skinning. Remember that a sharp edge is easier to maintain than it is to put an edge back on a dull knife. Sharpen often.

It is NOT ‘Stainless Steel’ even though it contains chromium, so it needs care and attention to prevent corrosion. This is nothing major, it just means that you clean and dry off the knife after use and put a thin film of rust blocker such as A.G. Russel’s ‘Rust Free’ or some other oil (which I do to every knife before it goes out) regularly. And as with any knife, do not store it in it’s sheath for long periods of time as the chemicals used in tanning process will cause corrosion.

No two knives will be exactly the same because I ‘Electro-Etch’ the blade, which makes every knife unique and the purchaser can choose the wood used in the handle.

For the handle of this knife I used ‘Desert Iron Wood’. For finishing the wood handles of my knives I now use ‘Birchwood/Casey’ gun stock finishing. So maintaining the knifes handle is easy. I also treat each knife handle with Sealer & Filler, Tru-Oil, and Gun Stock Wax to give them a rich, long lasting finish.

You can order your own custom Kenai Moose Skinner for $225 by emailing me at moondogknives at gmail dot com. I accept PayPal, Zelle, Google Pay, and Popmoney and require a 50% deposit on all orders. Approximate wait time on order fulfillment is one month as each knife is individually built.

The Day Trippers Are Ready!

This series of four knives are designed to be a Day Hike or Light Camp Knife so I’ve named them the ‘Day Tripper’. You get a lot of value for your money. I make affordable, functional, and dependable ‘Works-of-art’ that you can pass down to your children.

The steel is 1084 High Carbon that I’ve electro-etched. These knives are handcrafted from start to finish. I start with a bar of 1084 steel, draw on the design; rough cut it out; grind out the shape; bevel it; sand it; sand it some more; drill holes for the pins; send it off for heat treating; get it back and then decide what etching effects and handle material I want to use. Each handle is hand shaped, sanded, and finished. I am now using ‘Birchwood/Casey’ gun stock products exclusively. I start with the ‘Filler/Sealer, then ‘Tru-Oil’ and finish with ‘GunStock Wax’ (multiple coats of each).

Once the knife is done, then comes the designing of a sheath for it. I use a #8-9 weight leather for the one piece. For the two (or more) piece sheath, I use a #12 weight for the back piece and #8-9 for the front and straps. Stains, designs and stitching are all done by hand by me.

Are they flawless? No. They are not mass produced, laser guided CNC machined by the dozens. Each and every one is unique and no two are exactly the same. So, if you are at all interested in supporting a struggling ‘Artisan’ please PM me for a price.

daytripper---oak-and-walnut

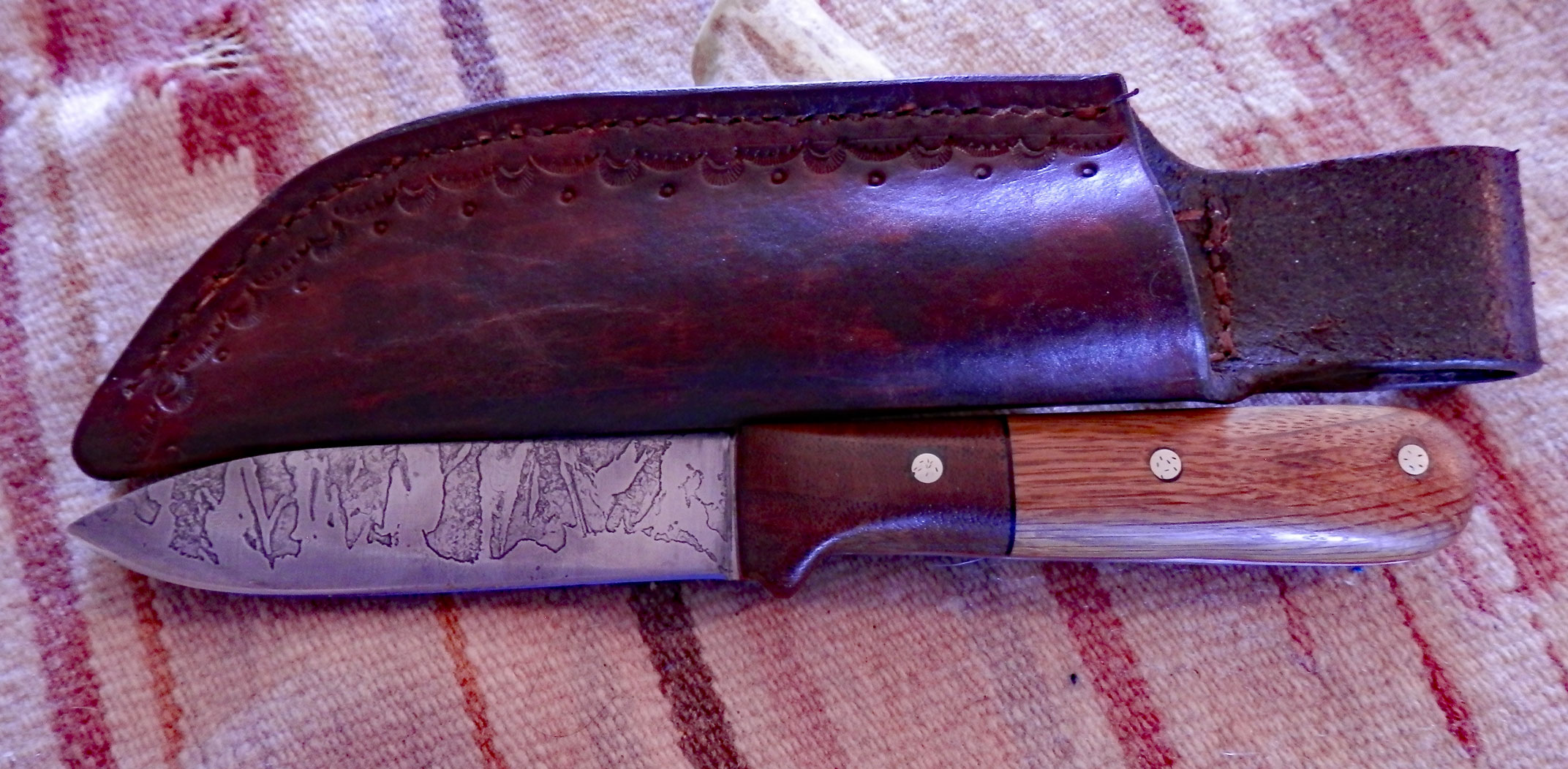

SOLD – DT001 – American Oak and American Walnut with Cinnamon & Black G-10 liners.

daytripper---dyed-magnolia

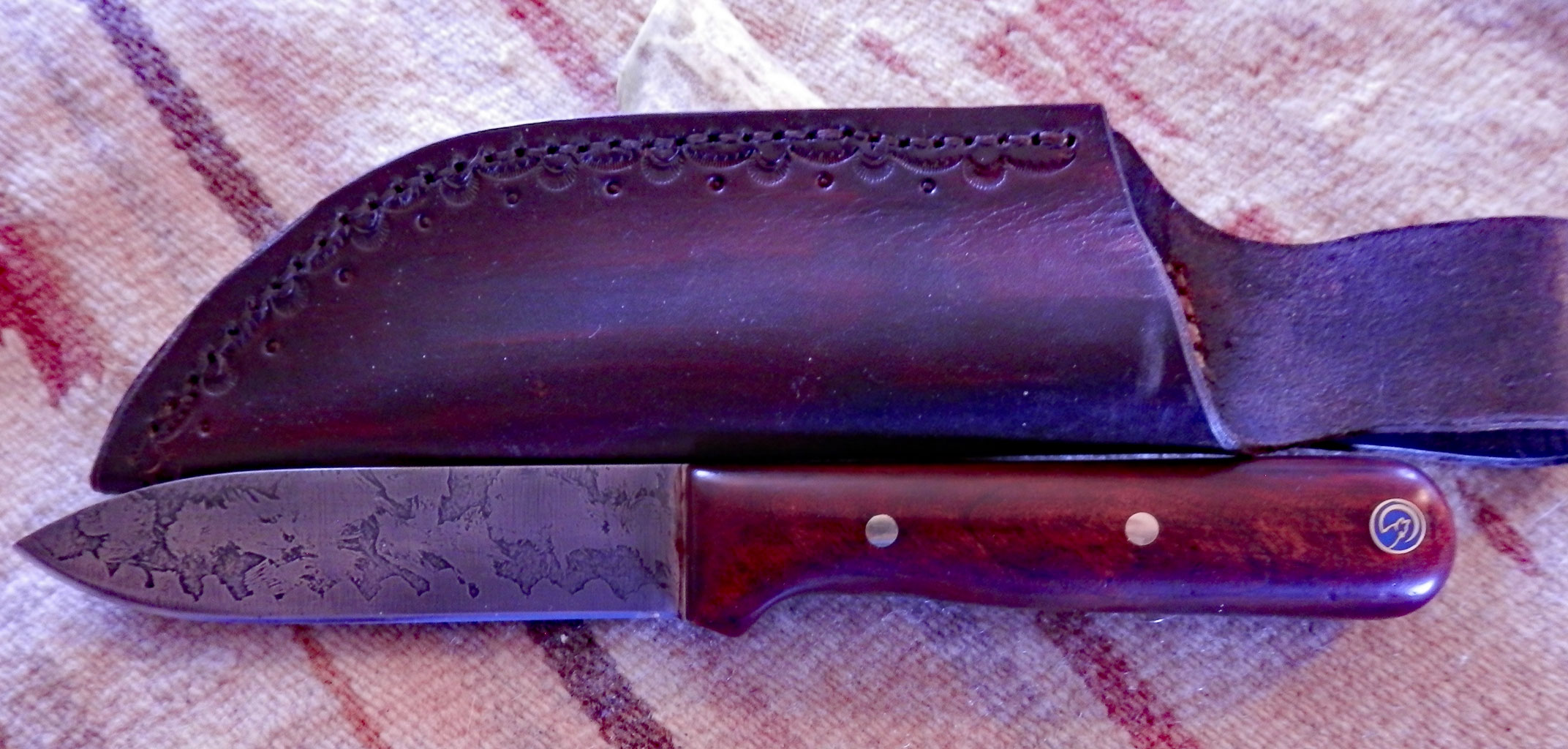

DT002 – This one (above) started out as a very light colored Magnolia but I found that it attracted dirt very easily, so I hit it with a Burgundy dye and used Green G-10 liners.

daytripper---lacewood

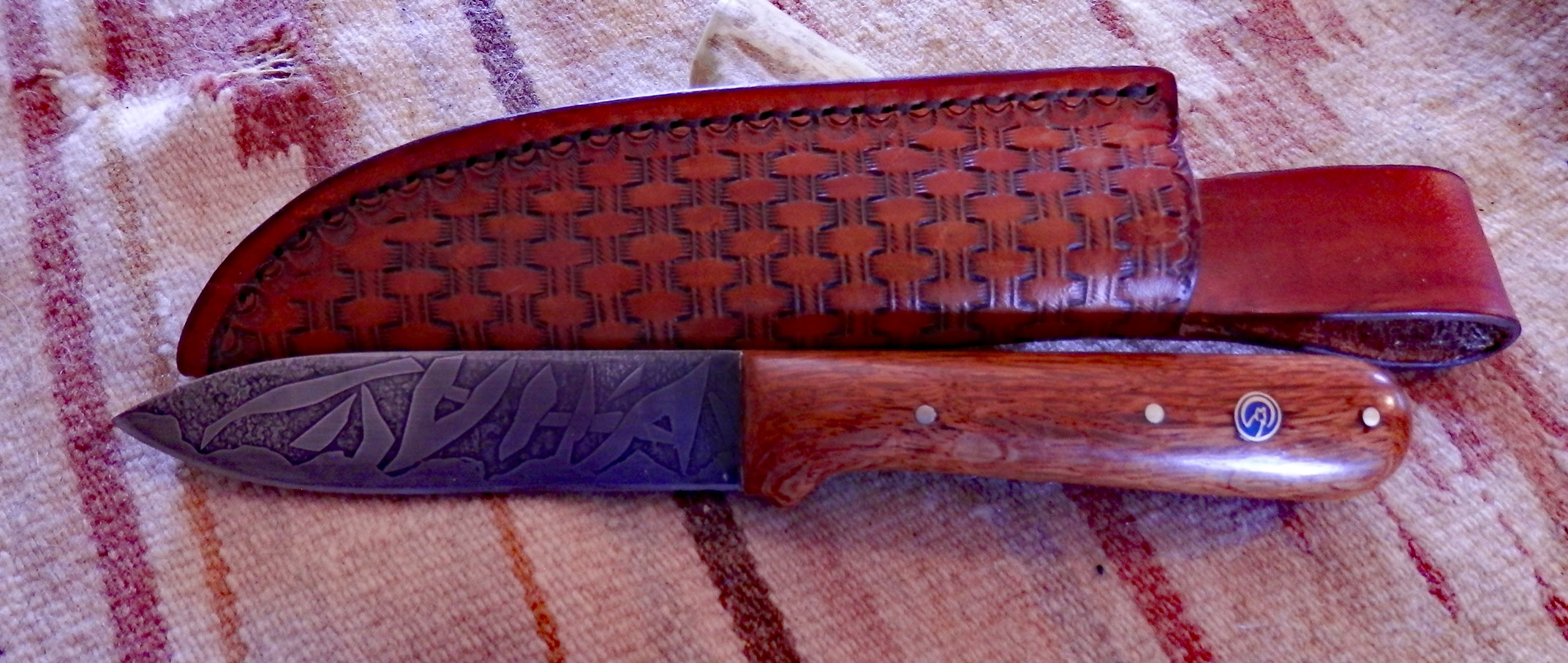

DT003Lacewood with yellow G-10 liners.

daytripper---black-and-white-ebony

SOLD – DT004 – Black and white Ebony with Gray & Black G-10 liners.

You can order your own custom knife by emailing me at moondogknives at gmail dot com. I accept PayPal, Zelle, Google Pay, and Popmoney and require a 50% deposit on all orders. Approximate wait time on order fulfillment is one month as each knife is individually built.

Reviewing and Remaking K-Bar’s Kephart

K-Bar Kephart

The K-Bar KephartI subscribe to all 3 of the prominent knife magazines and every issue is read from cover to cover… more than once. As I am a custom knife crafter (stock removal) I always pay particular attention to the knife reviews. To be honest I have always wondered whether or not the articles were biased in favor of the maker. One of the magazines did a review of K-Bars new release of the Kephart Knife and I bought the K-Bar ‘Kephart’ based on that review. Sorry to say, I was more than a little disappointed with their product (and consequently decided that there is definitely a bias).

The steel is good (1095 CroVan Carbon Steel) and I really like the finish K-Bar used on it. I also really like the knifes design (designed by Mr. Horace Kephart in 1897) and the thickness of the blade. I was also impressed with the quality of the sheath although it was not true to form for a Kephart reproduction. Unfortunately, ‘my’ review goes downhill from there.

First off K-Bar used nuts and bolts to secure the handle material instead of steel pins. Then they placed the nuts facing out rather than the bolt heads (Very tacky looking and an obvious lack of quality control?).

OLYMPUS DIGITAL CAMERA
K-Bar scale above. The knife remade with my own walnut scale below.

The “walnut” grips were not epoxied onto the tang and when I removed them after my testing, the tang was heavily rusted. I am well aware that in Mr. Kepharts time there was no epoxy, but then again there was no rust inhibiting coating like K-Bar used either. I’m all in favor of using modern technological advantages if it improves the quality and extends the life of the knife and is not blatantly obvious.

In that same vein – the walnut scales were not stabilized or finished with anything (raw wood) and I was getting small chips of wood coming off at the finger guard. The handle also ended up being very scarred up from use. Treating the wood with Tung Oil or some other hardener would have helped prevent this from happening. This is the first time I’ve received a knife with an unfinished handle. I also found the knife handle way too thin, which resulted in hot spots and difficulty in gripping it under serious use… and I do not have a large hand. Since it is a reproduction, maybe the measurements taken were of an old and worn handle and that’s why it is so thin?

Given the quality of the K-Bar version, I would have priced it at around the $80 mark rather than the $119 I paid. Having said all that – I really like the knife (thanks mainly to Mr. Kephart) and it will become my EDC once I finish modifying it to my liking.

“….It was a rough looking affair when I received it, neither ground nor polished. Every cent of its value had been put into material and temper, leaving me to beautify it as I might wish.” (Horace Kephart)

So that’s exactly what I’m doing. I am beautifying it as I wish. Thicker stabilized walnut grips with a red fiber liner (both epoxied on), peened copper pins and a Tung Oil/Linseed Oil finish. On mine I did a mustard etch and a partial bluing of the blade, just my own personalization of ‘my’ knife.

OLYMPUS DIGITAL CAMERA
Blueing and mustard treatment modification I made to finish on the blade.

OLYMPUS DIGITAL CAMERA
I added red G-10 liners.

OLYMPUS DIGITAL CAMERA
My completed modified knife with blueing/mustard treatment on blade, new heftier walnut scales, red G-10 liner, copper pins and my logo pin.

I am in the process of making 4 more that will be for sale in about a month. So if you bought a K-Bar Kephart knife, and are not quite as happy with it as you thought you’d be, and you like what I’ve done with mine, and leave a message or email: moondogknives@gmail.com. And I can “beautify it as YOU wish.”

If you find Mr. Kepharts knife design aesthetically pleasing, as I do, and want to know more about the knife and the man – pick up a copy of Knife Magazine or go to www.knifemagazine.com. They did an outstanding article that intrigued me enough that I went to Amazon and got one of Mr. Kepharts books.

The Christie Cutter

cristie-cutter

What do you give a woman who has saved your life? The Christie Cutter is one man’s answer to that question. His heart surgeon is not only a superb thoracic and heart surgeon but a woman with children and a very active lifestyle. He wanted to give her a knife that would be as special as she is and that would give her years of use and enjoyment.

The blade on this knife is full tang 416 fold Damascus heat treated to 58-60 RC so it is a strong blade as well as a beautiful one. There are 3 different steels (5160, 203E 52100, 15n20 for those of you who know steel) used to create this type of blade and it is so expensive it is sold by the inch, whereas most blade steel is sold by the foot. The blade is 2 1/2” flat ground and as already stated, full tang. It is 1/8” thick and 11/16” wide.

The handle is unusual in that it is camel bone, dyed green to emulate the look of jade! The person who commissioned it originally wanted a malachite handle, but after researching the properties of that stone, I was convinced it was not a good choice for a knife that will be used regularly. A strictly show piece? Maybe. A working knife? Nope!

The liner is two layered, one green and one cinnamon, of G-10 resin impregnated fiber.

It has a copper guard and pins.

The sheath is made of stamped and dyed cow leather with braided cord lacing and brass rivets.

The LEDC – Lady’s Every Day Carry

ledc

This series has come about by interpreting the market trend towards a “Non-intimidating” EDC (Every Day Carry) for women. Everyone, including women, should have personal protection on them but many ladies are hesitant to carry a gun. A knife is an excellent alternative. Having a knife on hand at all times is also handy when you are working around the property as well. You just never know when you’ll need one.

The blade is 2 7/8″ in cutting edge length and is made of D2 High Carbon Tool Steel. Although it is somewhat harder to work with, I must say that I am pleased with the edge I was able to get. It holds it’s edge well and is easy to ‘Field sharpen’. I think you will be pleased with it as a handy LEDC.

Each knife in this series is one-of-a-kind custom made with a customized handmade sheath.

The knife pictured here is the prototype for the series. The blade is brushed D2 High Carbon Tool Steel. The liner is black G-10 resin impregnated fiber. The handle is oak and the bolster and pins are brushed copper. The sheath is handmade of leather, stamped design and laced with artificial sinew.

All knives in this series are for sale at $125.00 (Price includes knife, sheath and shipping) unless it is marked sold. If there is a knife you like and it has been sold, let me know and I will see if I have the woods necessary to recreate it. However, keep in mind no two knives can ever be exactly alike.

Email me at moondogknives@gmail.com to place your order and I will invoice you via PayPal.



The Scalliwag – A Lady’s Purse Carry

scalliwag

Every lady needs a little protection. Many are hesitant to carry a gun. A knife is an excellent alternative!

This knife is a custom build for an amazing woman we dearly love. (The pattern will be available for others but I don’t plan to mass produce this model.) She is without a doubt the most truly Christian person we have ever met. At the same time she is a realist and a bit of a survivalist. She is perfectly capable of taking care of herself while she goes out into the community helping others.

The blade on this knife is full tang 416 fold Damascus heat treated to 58-60 RC so it is a strong blade as well as a beautiful one. There are 3 different steels (5160, 203E 52100, 15n20 for those of you who know steel) used to create this type of blade and it is so expensive it is sold by the inch, whereas most blade steel is sold by the foot. The blade is 2 1/2” flat ground and as already stated, full tang. It is 1/8” thick and 11/16” wide.

The handle is truly special! It is olive wood imported from Bethlehem and comes with a certificate of authenticity. The liner is cinnamon resin impregnated fiber. It has a brass guard and pins.

The sheath is a bit different from most I have made. Since it is designed to be carried in a purse, it does not have a belt loop. It has a locking liner like all my sheaths, so the knife does not fall out, but instead of a belt loop, it has a snap closure.

The Malone Custom Trekker

malone

This knife is a custom special commission. It is 7 7/8″ overall with a full tang. Like the Stoneman, the person this knife was designed for needed a good all around, versatile hiking/camping blade. The 3 1/2″ long by 1 1/4″ wide flat ground blade gives him what he would need for these purposes.

The blade is 5/32″ thick D-2 High Carbon Tool Steel, considered by many to be the best carbon steel for knife blades. It has a combination of superior abrasion resistance and toughness. It holds an edge very well for a long time. It is not stainless steel so it will rust if it is not looked after!

The bolster is brass. Liners are blue and green resin impregnated fiber to off-set the giraffe bone handle. The sheath is full cow leather stained dark brown custom handmade for this knife, laced with braided cord.
